8 Groups Heads SMT Chip Mounter SMD PCB Soldering Machine 380mmX400mm

Ask Lasest Price
Brand Name :	HWGC
Model Number :	HW-DSQ800-120F
Certification :	CE
Price :	usd+22000+pieces
Payment Terms :	T/T,
Supply Ability :	30+Pieces+Month
Delivery Time :	5-8work days

Add to Cart

Product Details
Company Profile

8 Groups Heads SMT Chip Mounter SMD PCB Soldering Machine 380mmX400mm

8 groups of independent mounting heads - 8 groups of mounting heads Chip Mounter Surface Mounter Smt Machine

Use the same type of cable carriers bearing up to 10 million constant motions as imported machines.
flexible cables designed for industrial motion applicati-on,which can resist a range of dangerous conditions, like extre-me temperatures and oil, and can handle any type of motion, including horizontal, torsional or high speed, ensure the reliab-le connection of the electrical circuit in high-speed reciprocati-ng motion.

Products Description

Specification
Number of Placement Heads	8(high-accuracy)
Number of iC Trays	96
Number of Feeders	120(subject to 8mm feeder)
Positioning Accuracy	0.01mm
Repeated Mounting Accuracy	0.02mm
Range of Mounting Speed	20000-26000Pcs/h
Applicable Components	resistor.capacitor.chip.lamp bead etc.
Supported Maximum Area of PCB	340*560mm
Feeders	NXT electric feeder,vibrating feeder, IC tray etc
Recognition Devices	mark camera x2,fast recognition camera x8. high-precision camera x1
Maximum Height of Applicable Components	≤20mm
Recognition Methods	simultaneous recognition and picking with eight heads
PCB Convey Mode	three-stage entry automatic connection from left to right, automatic PCB positioning
Mark Positioning	manual/automatic
Programming Method	automatic programming after manually importing files of PCB coordinates

8 groups of independent mounting heads - 8 groups of mounting heads Pick And Place Machine , Chip Mounter Surface Mounter , Smt Machine

Our Advantages

1.120pcs material stations -- can meet the mounting requirements of
various materials and various specifications and packages of the
product.

1) 120pcs 8mm material stations support NXT electric feeder, 12mm,
16mm, 24mm, 32mm and 44mm NXT electric feeder,,vibration feeder and
IC trays.

2)NXT electric platform specification: 8mm-44mm NXT electric
feeder, electric feeder stable feeding, high precision, long
service life.

2.8 groups of independent mounting heads - 8 groups of mounting
heads are distributed with different nozzles, which are suitable
for the mounting requirements of products with more specifications.

1) 8 groups of mounting heads can realize the double arms and four
heads pick simultaneously,pick up the material at same time, The
picking efficiency is improved greatly.

2)The mounting head can rise and fall independently, rotate from 0
to 360 degrees, and mount up to 20 mm components.

3)The z-axis can rise and fall independently according to the
thickness of the components,For the resistance and capacitance
components, the mounting head can realize the fly visual
identification, High components can be mounted at reduced speed.

4)It can meet the requirements of different sizes of components,
different specifications and different packages, achieve diversity,
one-time placement.

porduct description

The HW-DSQ800-120F is our most popular model with Vision. The HW-DSQ800-120F offers technologically advanced features with 260mm x 400mm work area, 120 single feeder positions where quick setup, easy of operation and high reliability are paramount.


Placement rates	26000CPH
Accuracy	± .001” (0.02mm)
Voltage	220AC
Weight	1000kg
Warranty	1 year
Suppport	Video Support
UI	The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
Max no. of Feeders (8mm tape)	120 pcs
Max Board Size	380mmX400mm
Smallest Component Capability	0201
Vision System	HWGC Vision
Vibratory Feeders	Loose, tube, stick (frequency & amplitude control)

The HW vision System assist allows accurate placement of 0201, BGA, QFN, QFP,LED and a wide range of virtually all SMT components.

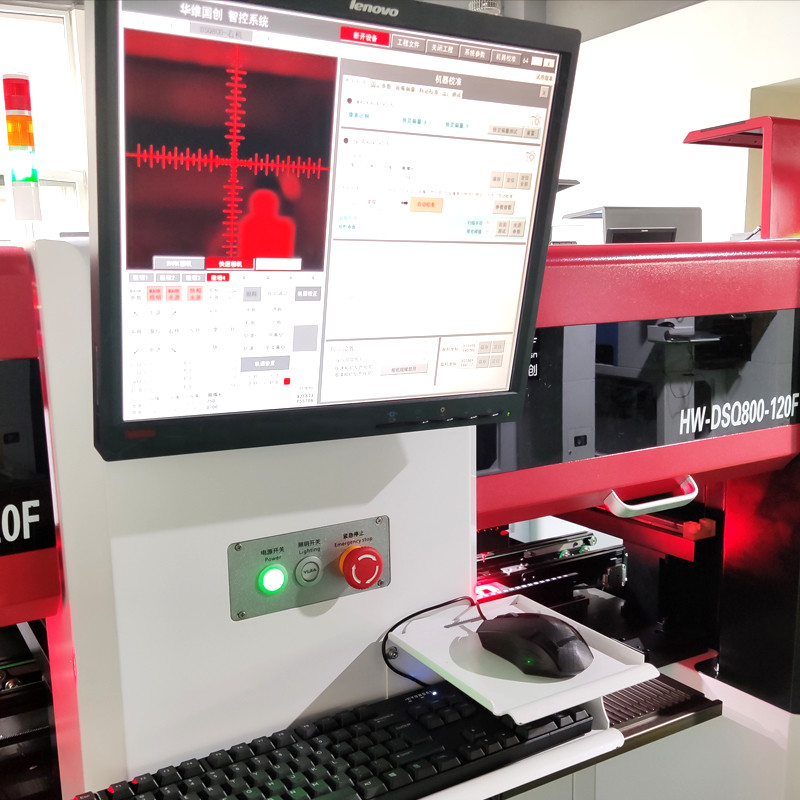

Vision System

The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation

Feeders

NXT Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
