8 Heads Solder Paste Printer Machine MultiFunctional 20000pcs/H 340*560mm

Product Categories

Beijing Huaweiguochuang Electronic Technology Co., Ltd.

Contact Now

8 Heads Solder Paste Printer Machine MultiFunctional 20000pcs/H 340*560mm

Ask Lasest Price
Brand Name :	HWGC
Model Number :	HW-DSQ800-120F
Price :	24500-24800$
Payment Terms :	T/T
Delivery Time :	8 work day

Add to Cart

Product Details
Company Profile

8 Heads Solder Paste Printer Machine MultiFunctional 20000pcs/H 340*560mm

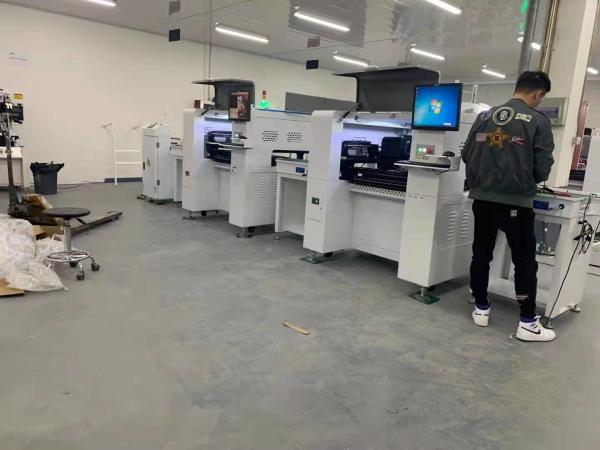

Online 8 Heads Multi-functional SMD Pick And Place Machine HW-DSQ800-120F With Vision Camera Assembly Line

Beijing HuaweiGuochuang Electronic Technology Co. Ltd. is a Chinese high-tech enterprise with inte-grated research and development
(R&D), producti-on and sales operations. The pick and place machi-ne, SMT's main equipment, is our key research and development
equipment.
Our vision is to become an enterprise which ma-kes cost-effective domestic pick and place machine of our own and we intend to
break the current situ-ation of international monopoly.
We have maintained the philosophy of being pa-triotic, pragmatic, innovative as well as serving the society. The products of pick
and place machine on sale are not only appreciated by small and medium-sized enterprises at home, but also very well receiv-ed by
consumers abroad.

Number of feeders	50
Number of IC tray	6
Number of cameras	6
Number of heads	4
Average power	400W
Positioning precision	0.01MM
The buffer range of suction nozzle	4.5MM
Power supply	220V, 50/60Hz
Compressed air	0.5-0.6Mpa
Drive motor	Panasonic servo motor
Vacuum source of suction nozzle	high-speed on-off vacuum generator with vacuum breaker
Maximum circuit board area	600X455mm
Maximum travel scope in Z axis	20MM
Operating system	full-automatic chip mounter operating system independentlydeveloped by Huawei Guochuang based on Windows operating systemand it supports windows xp win7 operating system
Element angle	0-360°, synchronous rotation during movement
X/Y operation mode	intelligent curve of the linear acceleration and deceleration linkage
MARK point positioning	full-automatic (the MARK point can be adjust at will)
Intelligent alarm	automatic correction, automatic filling, feeding shortage alarm
Plate entering mode	automatic connection from left to right in single sectionsautomatic PCB transfer positioning. /plunger positioning manual plate feeding.

FAQ

Q: How is the training?
A: After buying our machines, your engineers can go to our company
or it is so easy to operate. We have English user manual and guide
video to teach you how to use the machine. The user manual will come with the
machine together.

Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is
enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A: All of our machines have passed CE
certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.

Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the
warranty. If there is any doubt in the process of operating the
machine, pls feel free contact us. We will help you in time.

Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
